Through bore slip ring

产品类型:Through Bore Slip Ring 产品型号:PSR-T100
PSR-T100 is a commercial slip rings that with a 101.6mm through-bore and a 205mm outside diameter. Use fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition fiber bush do not require lubrication and produce virtually no wear debris...
  • 性能

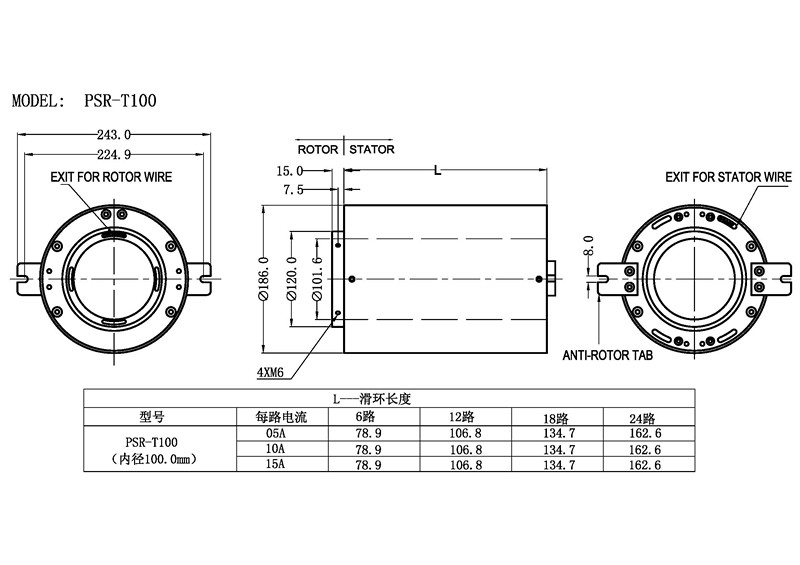

  • 尺寸图
  • 特征
  • 安装方法

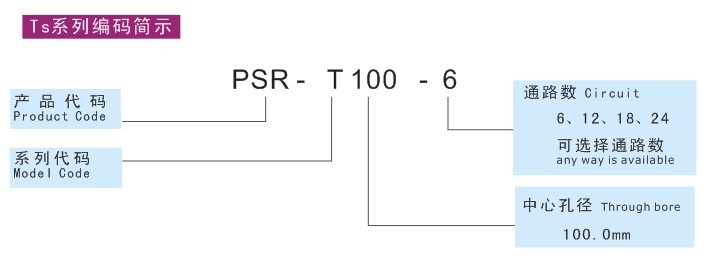

  • 订货号
  • 下载

Electrical Spec.

Options

Circuit

6-300

Flange for set up

Rating voltage

380VAC

The wire exit direction,length is optional

Rating current

5A /Ring10A /Ring15A /Ring

Can combine more circuits:1-300Ring

Insulation resistance

1000MΩ@500VDC

Higher voltage and current capacity

Dielectric strength

600VDC@50Hz

Higher rotational seed:1000Rpm2500Rpm5000Rpm10000Rpm

Electrical noise

10mΩ@6VDC,50mA, 5Rpm



 Mechanical Spec

 Environment

Through bore

100mm

Working temperature

-40~+80

Speed

300Rpm

Mechanical vibration

MIL-SID-810E

Torque

40N.cm

Humidity

10% to 90% RH non-condensing

Seal class

IP54 (IP68Options)

Materials

Lead Free,RoHS compliant

Contact material

Precious Metal

CE Certified

YES

Lead Wire

12 color Teflon wire





Life

30million revolutions





¤  Feature

♦Fiber brush technology provides miantenance free operation-no cleaning or lubrication requirement

♦Moudel design ;Meet the most of requirement

♦More install method for option

♦Can combine signal and power in same slip ring

♦Can combine more circuits:1-100Ring



¤ Typical Application

♦Pharmaceutical Machine

♦Crane

♦Flling Machinel

♦Cabel Reels

♦Rotating platform

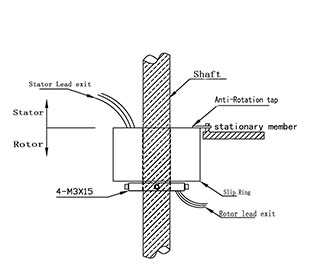

Installation Guide:


1.Main shaft mouted units:
A.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring)


2.Housing mouted units:
A.Anti-Rotation tap used for connecting the stator of slip ring with the stationary member of euipment
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring






CAUTION:

Because of possible geometric mismatching between the customer's application and the slip ring,'hard mouting'of both ends of the slip ring(i.e.securing the rotor and stator such that there is no floating during operation) is not recommended and may cause premature failure.
